Micro Conical Fermentation Tank Stainless Steel SUS304 Material Polished Surface

    Buy cheap Micro Conical Fermentation Tank Stainless Steel SUS304 Material Polished Surface from wholesalers

    Buy cheap Micro Conical Fermentation Tank Stainless Steel SUS304 Material Polished Surface from wholesalers
    • Buy cheap Micro Conical Fermentation Tank Stainless Steel SUS304 Material Polished Surface from wholesalers
    • Buy cheap Micro Conical Fermentation Tank Stainless Steel SUS304 Material Polished Surface from wholesalers
    • Buy cheap Micro Conical Fermentation Tank Stainless Steel SUS304 Material Polished Surface from wholesalers
    • Buy cheap Micro Conical Fermentation Tank Stainless Steel SUS304 Material Polished Surface from wholesalers
    • Buy cheap Micro Conical Fermentation Tank Stainless Steel SUS304 Material Polished Surface from wholesalers
    • Buy cheap Micro Conical Fermentation Tank Stainless Steel SUS304 Material Polished Surface from wholesalers

    Micro Conical Fermentation Tank Stainless Steel SUS304 Material Polished Surface

    Ask Lasest Price
    Brand Name : SLET
    Model Number : 500L
    Certification : CE ISO
    Price : USD1730--2030USD
    Payment Terms : T/T
    Supply Ability : 100 sets per month
    Delivery Time : 25
    • Product Details
    • Company Profile

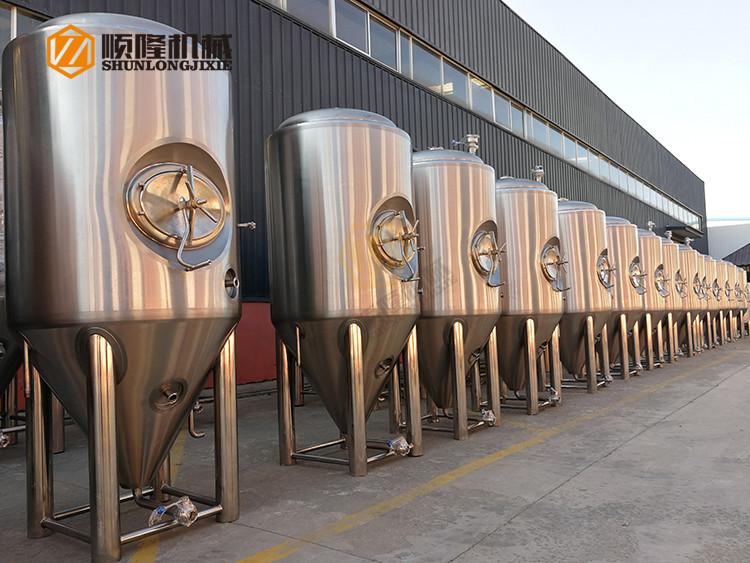

    Micro Conical Fermentation Tank Stainless Steel SUS304 Material Polished Surface

    500L stainless steel fermentation tank


    • Design pressure 3 bar, working 2 bar
    • 4 stainless steel legs with leveling footpads
    • Interior shell: 304 stainless steel, thickness 2mm (11 gauge)
    • Exterior shell: 304 stainless steel, thickness 3mm (14 gauge)
    • Interior and exterior finish bright polish to 0.6μm (250 grit), hygiene surface
    • 60 /70 degree cone bottom, with 25% head space
    • Racking port and discharge port with butterfly valve and fittings
    • Side manway door, shadowless
    • Dual zone dimple cooling jacket with glycol inlet and outlet
    • Polyurethane insulation thickness 80-100mm for cooling jacket on side and bottom
    • Fully welded exterior shell
    • CIP arm and spray ball
    • Rotating tank racking arm
    • Bunging valve
    • Shock proof Pressure gauge
    • Thermometer
    • Perlick style Sample valve
    • Tank complete with fittings, valves and all parts

    List of Items

    • 1.Dished head .
    • 2.Reference outer size 1060/1060/2130cm
    • 3.Total capacity 740L ;Effective capacity 500L
    • 4.Design pressure 0.2mpa;working pressure 0.15mpa
    • 5.Single stage cooloing jacket ,stainless steel solenoid valve ,KIESELMANN mechanical pressure regulating valve
    • 6.Dimple cooling jacket 1.5mm
    • 7.conial base 60
    • 8.Beer racking arm on cone section, bottom drain port,associated valves and fittings
    • 9.Beer outlet and drain port
    • 10. Top hops and drain port
    • 11.Pressure gauge,respiration valve,samole valve
    • 12.Top mamhole
    • 13.PT100 temperature probe
    • 14.4 stainless steel legs,with screw assembly to adjust leg height,the base plate with two fixed hole
    • 15.The necessary fittings and valves.

    Fermentor inner using 304 stainless steel,luxury stainless steel 8k/drawing main exterior ,bright stainless steel mushroom head ;internal polished 0.4um,internal omni-directional Wshing ball;polyurethane insulation;75°under cone compression design ,with stainless steel Miller board/ice water coil pipe to cool down.


    Micro Conical Fermentation Tank Stainless Steel SUS304 Material Polished SurfaceMicro Conical Fermentation Tank Stainless Steel SUS304 Material Polished SurfaceMicro Conical Fermentation Tank Stainless Steel SUS304 Material Polished SurfaceMicro Conical Fermentation Tank Stainless Steel SUS304 Material Polished SurfaceMicro Conical Fermentation Tank Stainless Steel SUS304 Material Polished SurfaceMicro Conical Fermentation Tank Stainless Steel SUS304 Material Polished Surface


    Fermentatrion tank complete with piping ,fitting ,sanitary,and all parts.

    Carbonation port is available for special request .

    If you would like to change ,add ,remove or modify any parts of tanks, we can accommodate that.

    Specific fitting sizes,changes and locations will be set during the design process after a deposit is taken


    Our Service

    Before-Sales
    1. Layout Design for new build brewery
    Our experienced engineer( more than ten years) will provide the detailed layout according to your brewery, if needed, we will fly to your brewery at our cost.
    2. Exist Brewery Expansion
    Expansion of the brew house, beer tanks, or other parts, we will design and manufacture as per your exist brewery.
    3. Effective business communication
    Our sales team are young and rich of experience, we are full of passion, all of us have been in this business line for more than 8 years, and they are graduated from UK, Russia etc.
    4. Brewing consultant
    We also bult a good relation with Shandong university and other institutes who are expert in beer brewing, we are capable to provide the most advanced brewing technology.

    After-Sales Service
    1. Guarantee: 3 years
    2. Installation: Our engineers team will provide you the perfect installtion and commissioning service. Almost of them have been to 5 countries even more. Micro Conical Fermentation Tank Stainless Steel SUS304 Material Polished SurfaceMicro Conical Fermentation Tank Stainless Steel SUS304 Material Polished Surface
