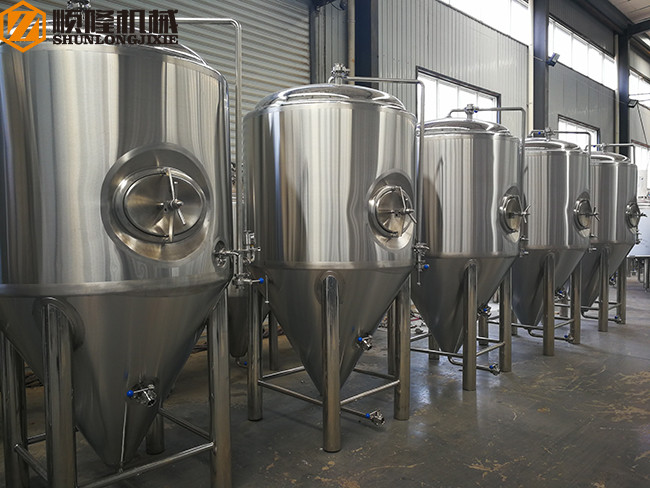

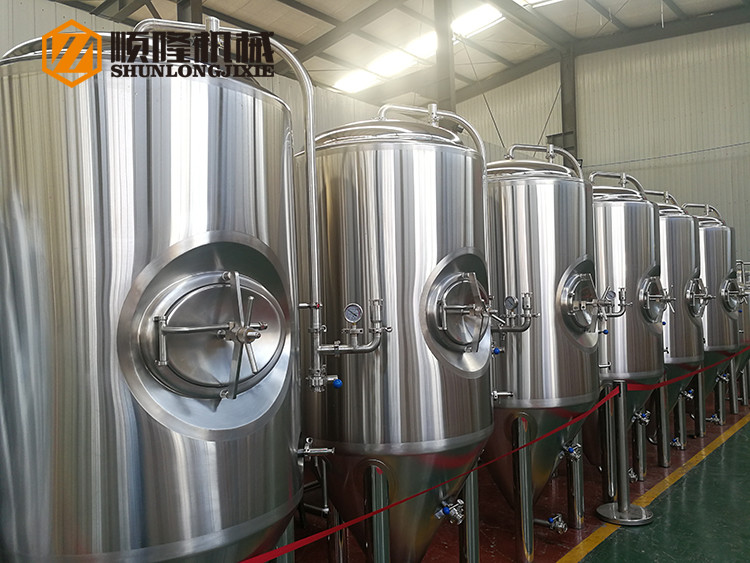

600L beer stainless fermentation tank
Fermentation tanks
- Design pressure 3 bar, working 2 bar
- 3 stainless steel legs with leveling footpads, the leg is
adjustable
- Interior shell: 304 stainless steel, thickness 2mm (11 gauge)
- Exterior shell: 304 stainless steel, thickness 3mm (14 gauge)
- Interior and exterior finish bright polish to 0.6μm (250 grit),
hygiene surface
- 60 /70 degree cone bottom, with 25% head space
- Racking port and discharge port with butterfly valve and fittings
- Side manway door, shadowless
- Dual zone dimple cooling jacket with glycol inlet and outlet
- Polyurethane insulation thickness 80-100mm for cooling jacket on
side and bottom
- Fully welded exterior shell
- CIP arm and spray ball
- Rotating tank racking arm
- Bunging valve
- Shock proof Pressure gauge
- Thermometer
- Cooling system
- Perlick style Sample valve
- Tank complete with fittings, valves and all parts.
- Available in size 600Lfermentation ,these tanks are ready for
shipment.
1)With our equipment you can make different kinds beers such as ale
,lager ,IPA,stout beer and so on,we supply brewing recipes.
2)We have different capacity from 300L to 10000L per batch,our
brewery equipment approved pessure CE, ISO,ROHS,TUV certificate.
3)Have good feedback from our clients
4)Installation /Operation/Service/Maintenance Manual:in English
5)Automatic /semi-automatic operation system ,need one brewer to
operate
Accessorys
1)Manway in top or side that we can design in accordance with your
request
2)Sample valve
3)Pressure relief and vaccum valve
4)Temp .sensor/thermometer
5)Rotating racking arm with butterfly valve
6)Bottom outlet with butterfly valve
7)spraying Ball with down tube
8)Stainless pipe legs with adjustable footpads
9)safety valve
Fermentatrion tank complete with piping ,fitting ,sanitary,and all
parts.
Carbonation port is available for special request .
If you would like to change ,add ,remove or modify any parts of
tanks, we can accommodate that.
Specific fitting sizes,changes and locations will be set during the
design process .lf you do are not content with our some psrts of
tank , we also can provide some specific brand you point to install
in the equipment .We can assure you that every detail part of our
product will reach your satisfaction .And we awlays receive good
remark from our cutoms abroard.
List of Items
- 1.Dished head .
- 2.Reference outer size 1060/1060/2130cm
- 3.Total capacity 740L ;Effective capacity 500L
- 4.Design pressure 0.2mpa;working pressure 0.15mpa
- 5.Single stage cooloing jacket ,stainless steel solenoid valve
,KIESELMANN mechanical pressure regulating valve
- 6.Dimple cooling jacket 1.5mm
- 7.conial base 60
- 8.Beer racking arm on cone section, bottom drain port,associated
valves and fittings
- 9.Beer outlet and drain port
- 10. Top hops and drain port
- 11.Pressure gauge,respiration valve,samole valve
- 12.Top mamhole
- 13.PT100 temperature probe
- 14.4 stainless steel legs,with screw assembly to adjust leg
height,the base plate with two fixed hole .
- 15.The necessary fittings and valves.
Shun Long Service
Our Service
Before-Sales
1. Layout Design for new build brewery
Our experienced engineer( more than ten years) will provide the
detailed layout according to your brewery, if needed, we will fly
to your brewery at our cost.
2. Exist Brewery Expansion
Expansion of the brew house, beer tanks, or other parts, we will
design and manufacture as per your exist brewery.
3. Effective business communication
Our sales team are young and rich of experience, we are full of
passion, all of us have been in this business line for more than 8
years, and they are graduated from UK, Russia etc.
4. Brewing consultant
We also bult a good relation with Shandong university and other
institutes who are expert in beer brewing, we are capable to
provide the most advanced brewing technology.
After-Sales Service
1. Guarantee: 3 years
2. Installation: Our engineers team will provide you the perfect installtion and
commissioning service. Almost of them have been to 5 countries even
more.
