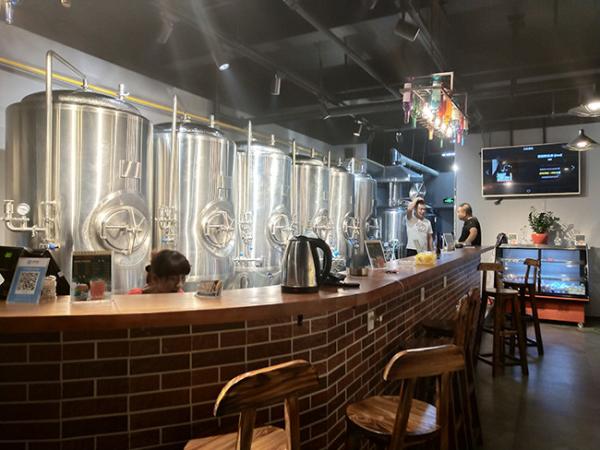

500L beer brewing equipment for brewpub , or restaurant
Production Description
This type of 500L beer brewing system is design for different
beers, ale, lager etc, could make different kinds of beer. It
contains two vessls brewhouse, fermentation tanks, chiller,
cleaning system. This set equipment uses PLC controller,
temperature, and time display on the screen. Easy to operate,
semi-automatic.
300l brewing equipment technical specification:
| Item | 300L Beer equipment standard configuration system |
| Specification | Daily output 300 litres beer per day, 12 days fermentation period standard configuration |
| Date of production and delivery | Production period is 25 days,and delivery date is about 30days |
| Packaging | Inside stretch film and PE paper |
| Size | One 20 feet container |
| Power consumption per day | 60kwh |
| Total water content | 1.5t per day |
| Raw material consumption | Malt: 60 KG, Hops: 018KG, Yeast: 0.3 KG. |
| Terms of payment | Advance payment40%,deposit is in, contract comes into effect,
Settle full payment when the delivery |
| Warranty period | Main machine guarantee for three years, all life service. |
| Price adjustable | The quotation is not adjustable to stainless steel material market
price. Is it valid for 30 days |
| Saccharification appearance | classic style Stainless steel shape design |
| Floor area | 40square meters |
| Power of electricity heater | 25KW |
| Cooling System | The heat exchanger refrigeration unit |
| Electricity control system | quality assurance 18 months |
| Mode of transportation | ocean shipping |
| Delivery points | Qingdao port |
| The third party test | Through the BV the authentication of the company |
Brewery costs analysis
| production capacity | 100L | 200L | 300L | 500L | 1000L | 2000L |
| Floor space | ≥15m² | ≥25m² | ≥35m² | ≥50m² | ≥80m² | ≥120m² |
| Total power | 12kw | 12kw | 12kw | 15/36kw | 22/72kw | 31/144kw |
Consumption of
water(Max) | 0.2m³/h | 0.4m³/h | 0.5m³/h | 1.0m³/h | 1.5m³/h | 2.0m³/h |
Total water
consumption per day | 0.5m³/h | 1.0m³/h | 1.5m³/h | 2.5m³/h | 5.0m³/h | 10m³/h |
| Consumption of malt | 20kg | 40kg | 60kg | 100kg | 200kg | 400kg |
| Consumption of hops | 60g | 120g | 180g | 300g | 600g | 1.2kg |
| Yeast | 100g/1L | 200g/2L | 300g/3L | 500g/5L | 1kg/10L | 2kg/20L |
| Steam | | 0.017t/hr | 0.017t/hr | 0.05t/hr | 0.10t/hr | 0.20t/hr |
We mainly have the following kinds of equipment:50L/D,100L/D,
200L/D, 300L/D, 400l/D,500L/D,600L/D,800L/D, 1000L/D,
1200L/D,1500L/D,1800L/D,2000L/D,
2300L/D,2500L/D,3000L/D,5000L/Detc. We can produce the equipment
according to clients’ requirments. Our equipment is mainly applied
in hotels, bars, barbecue, small and medium sized breweries and so on. As for the price, different products and
specifications means various prices.
