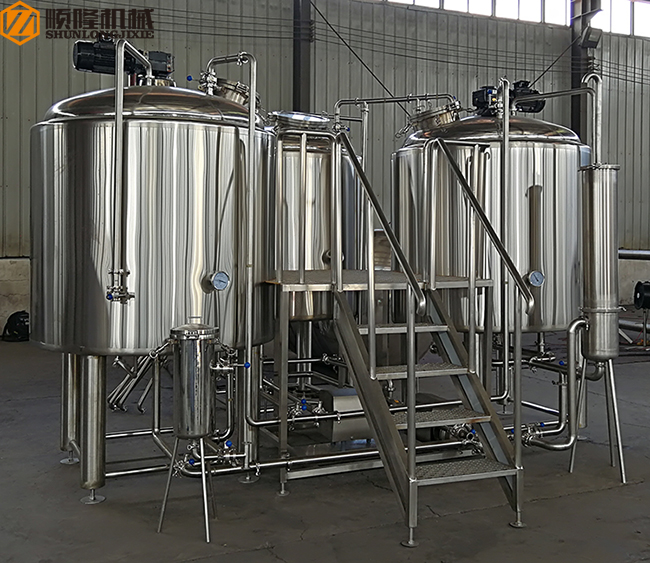

500L Beer Brewing kit with three vessles brewhouse

Product Description

Characters

i Brew house

• Inner SUS304 Stainless Steel thickness: 3.0mm

• External SUS 304 Stainless Steel thickness: 2.0mm

• Insulation: Polyurethane thickness: 80mm.

• Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination

• 360° CIP spraying ball

• Stream heating, dimplate plate steam jacket thickness: 3mm

• Equipped with: Grain rake and agitator

• Temperature measurement: Temperature Probe PT100

• Food grade centrifugal pump VFD

• Mash infusion process

ii Fermentation tank

• Dimple plate cooling jacket, thickness:1.5mm

• Dry hopping port

• Stringent tank and Jacket leakage test by water and pressured gas, Tank design pressure is 0.3Mpa

• Cone 60° resist compression design, dripping temperature drop

• Carbonation port and stone for special request

• Temperature display: PT100

• Inner SUS304 Stainless Steel thickness: 3.0mm

• External SUS 304 Stainless Steel thickness:2.0mm

• Insulation: Polyurethane thickness: 100mm.

• Tri clamp discharge arm with butterfly valve

• 360° CIP spraying ball

Cooling Unit

1. Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing

2. Efficiency chillers or refrigerators with fryon to supply cooling energy

3. Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

4. All pipes, fitting, insulation materials are included

Others

Portable CIP system for cleaning the tanks

Steam boiler for brewhouse heating

Water treatment for brew water

Oil free air compressor

Outside surface

Stainless steel or red copper,THK:1.5mm-3mm

Inner surface

S.S.304,THK:2mm-4mm

Top shape

Seal head or conical head

Heating method

Natural gas/electricity/LPG/direct fire

Insulation layer

Protected by rockwool,THK:70-100mm

Polishing

≤0.4µm

Manhole

Side upward

Spral ball

In the center of the inside tank

Agitator

Raking system conneted into a top reducer

Chimney

On the top of the tank

Jinan Shun Long Service

Before-Sales Service

1. Layout Design for new build brewery

Our experienced engineer( more than ten years) will provide the detailed layout according to your brewery, if needed, we will fly to your brewery at our cost.

2. Exist Brewery Expansion

Expansion of the brew house, beer tanks, or other parts, we will design and manufacture as per your exist brewery.

3. Effective business communication

Our sales team are young and rich of experience, we are full of passion, all of us have been in this business line for more than 8 years, and they are graduated from UK, Russia etc.

4. Brewing consultant

We also bult a good relation with Shandong university and other institutes who are expert in beer brewing, we are capable to provide the most advanced brewing technology.

Jinan Shun Long Machinery Co., Ltd. is a professional manufacturer of fermentation equipment. It is specialized in the design, manufacture, installation and commissioning of various beer equipments, fruit wine equipments and supporting facilities. It mainly includes mini brewing equipment, fermentation equipment, yeast propagation equipment, small and medium-sized breweries, other refrigeration equipments in hotels, bars and etc.

Subsidiary company:

Jinan Zhong Niang Machinery Equipment Co., Ltd., which specializes in manufacturing air-drying machines, dryers, cyclone and other mechanical equipment.

Jinan Shun Long Machinery Co., Ltd. Pingyuan Branch, which specializes in the field of bio-industry, providing technology improvement services such as process research and development, equipment development, installation and construction, and energy conservation and consumption reduction systems.

Shun Long company warmly welcomes friends from all circles to visit us!
