10HL Stainless Steel Beer Making Machine Semi Automatic Control With Jacket

Ask Lasest Price
Brand Name :	SLET
Model Number :	SL-1000L
Certification :	CE ISO
Price :	USD 45,000- 75,000 Per set
Payment Terms :	T/T
Supply Ability :	6 sets per month
Delivery Time :	25 working days after the deposit

Add to Cart

Product Details
Company Profile

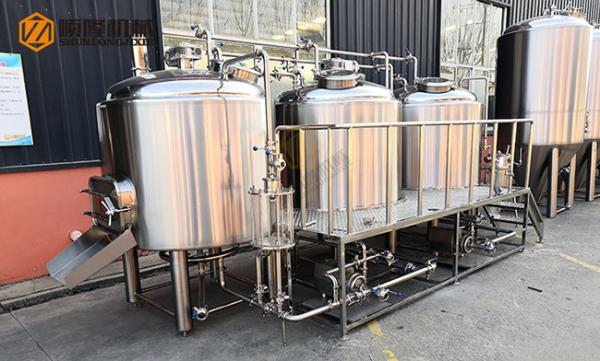

10HL Stainless Steel Beer Making Machine Semi Automatic Control With Jacket

10HL Stainless Steel Beer Making Machine semi automatic control with jacket

Product Description

500KG Malt mill
1000l SS304 brewhouse, steam heating suggested
Plate heat exchanger

Wort aerator
1000L fermentation tanks
1000l brite tank
3000l glycol tank
Mobile CIP
Control manual control suggested
PLC avaiable

Brewery Costs and output

production capacity	100L	200L	300L	500L	1000L	2000L
Floor space	≥15m²	≥25m²	≥35m²	≥50m²	≥80m²	≥120m²
Total power	12kw	12kw	12kw	15/36kw	22/72kw	31/144kw
Consumption of water(Max)	0.2m³/h	0.4m³/h	0.5m³/h	1.0m³/h	1.5m³/h	2.0m³/h
Total water consumption per day	0.5m³/h	1.0m³/h	1.5m³/h	2.5m³/h	5.0m³/h	10m³/h
Consumption of malt	20kg	40kg	60kg	100kg	200kg	400kg
Consumption of hops	60g	120g	180g	300g	600g	1.2kg
Yeast	100g/1L	200g/2L	300g/3L	500g/5L	1kg/10L	2kg/20L
Steam		0.017t/hr	0.017t/hr	0.05t/hr	0.10t/hr	0.20t/hr

Beer brewery system

Main components

1.Milling system

Malt mill,grain conveyor,grain hopper

2.Heating system

1.Electric heating

2.Steam heating

3.Burner(Direct fire heating)

3.Beer brewhouse system

1.(Two vessel)Mash/lauter tank,brew kettle/whirlpool tank

2.(Three vessel) Mash tun,Lauter tank,brew kettle/whirlpool tank

3.(Three vessel)Mash/lauter tank,brew kettle,whirlpool tank

4.(Four vessel)Mash tun,lauter tank,brew kettle,whirlpool tank

4.Fermenting system

Beer fermentation tank

Beer bright tank

5.Cooling system

Glycol water tank

Chiller unit

6.Cip cleaning system

Alkali tank

Disinfection tank

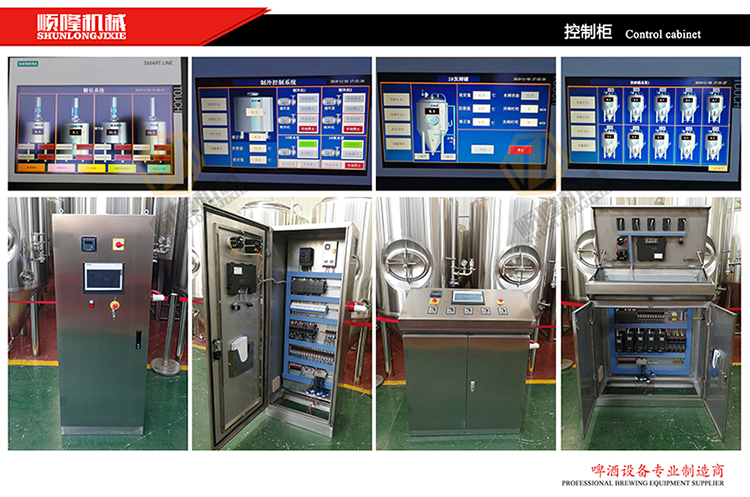

7.Control system

Semi auto controller

PLC auto controller

8.Filling system

1.Bottle filling,washing machine

2.Keg filling,washing machine

3.Beer kegs

Our Service

Before-Sales
1. Layout Design for new build brewery
Our experienced engineer( more than ten years) will provide the detailed layout according to your brewery, if needed, we will fly to your brewery at our cost.
2. Exist Brewery Expansion
Expansion of the brew house, beer tanks, or other parts, we will design and manufacture as per your exist brewery.
3. Effective business communication
Our sales team are young and rich of experience, we are full of passion, all of us have been in this business line for more than 8 years, and they are graduated from UK, Russia etc.
4. Brewing consultant
We also bult a good relation with Shandong university and other institutes who are expert in beer brewing, we are capable to provide the most advanced brewing technology.

After-Sales Service
1. Guarantee: 3 years
2. Installation: Our engineers team will provide you the perfect installtion and commissioning service. Almost of them have been to 5 countries even more.
