Apartment-friendly beer-making kits to make it easy to craft
artisanal beer
Product Description
| Mash / Lauter tun | 1000L | Mashing Process: Decoction. Infusion. Multi-step infusion
Heating source: Steam, Electric, Gas
SUS304 / Red copper |
Brew Kettle/
Whirlpool Tank | 1000L |
| Fermentation Tank | 1000L / 2000L | Top manway / Side manway
Drying hop port to brew IPA
Dimple Plate Cooling jacket
Carbonation port to fill CO2 |
Characters
i Brew house
Inner SUS304 Stainless Steel thickness: 3.0mm
External SUS 304 Stainless Steel thickness: 2.0mm
Insulation: Polyurethane thickness: 80mm.
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various
combination
Equipment with tangent tube
Easy to clean and detachable sparging ball
360° CIP spraying ball
Stream heating, dimplate plate steam jacket thickness: 3mm
Equipped with: Grain rake and agitator
Temperature measurement: Temperature Probe PT100
Food grade centrifugal pump VFD
Mash infusion process

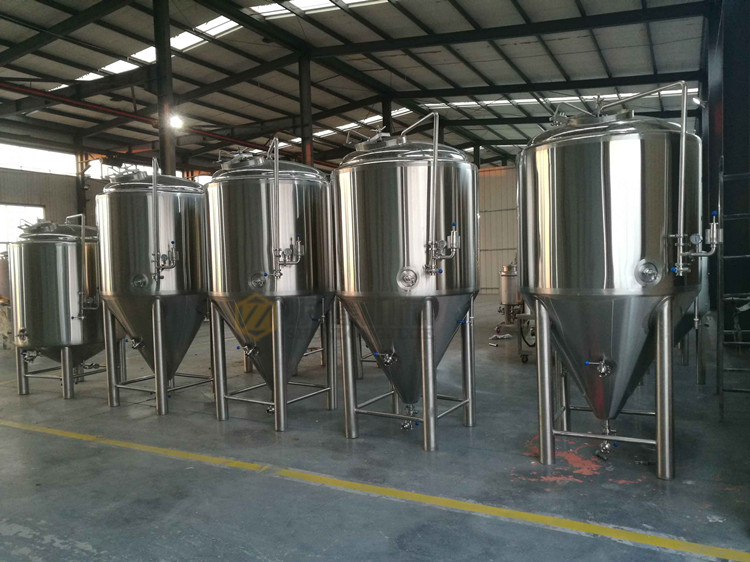

ii Fermentation tank
Dimple plate cooling jacket, thickness:1.5mm
Dry hopping port
Stringent tank and Jacket leakage test by water and pressured gas,
Tank design pressure is 0.3Mpa
Cone 60° resist compression design, dripping temperature drop
Carbonation port and stone for special request
Temperature display: PT100
Inner SUS304 Stainless Steel thickness: 3.0mm
External SUS 304 Stainless Steel thickness:2.0mm
Insulation: Polyurethane thickness: 100mm.
Tri clamp discharge arm with butterfly valve
360° CIP spraying ball
Cooling Unit
1. Insulated glycol water tank with or without copper coil for
glycol liquid holding and mixing
2. Efficiency chillers or refrigerators with fryon to supply
cooling energy
3. Sanitary centrifugal pump for glycol water recycle among tanks
and heat exchanger
4. All pipes, fitting, insulation materials are included
Control Unit
1. Mashing Pump on/off excluded VFD
2. Temperature display and Auto/Manu heating Control for brewhouse
tanks
3. Auto/Manu Glycol Water Pump control
4. Auto/Manu Chiller control
5. Temperature display and Auto/Manu Control for FVs and BBTs
6. Temperature display and Control for GWT and CLT
7. Temperature controller, thermocouple, solenoid valves etc are
included
8. PLC S7200 Siemens
Others
Portable CIP system for cleaning the tanks
Steam boiler for brewhouse heating
Water treatment for brew water
Oil free air compressor
Brewery COST
| production capacity | 100L | 200L | 300L | 500L | 1000L | 2000L |
| Floor space | ≥15m² | ≥25m² | ≥35m² | ≥50m² | ≥80m² | ≥120m² |
| Total power | 12kw | 12kw | 12kw | 15/36kw | 22/72kw | 31/144kw |
Consumption of water(Max) | 0.2m³/h | 0.4m³/h | 0.5m³/h | 1.0m³/h | 1.5m³/h | 2.0m³/h |
Total water consumption per day | 0.5m³/h | 1.0m³/h | 1.5m³/h | 2.5m³/h | 5.0m³/h | 10m³/h |
| Consumption of malt | 20kg | 40kg | 60kg | 100kg | 200kg | 400kg |
| Consumption of hops | 60g | 120g | 180g | 300g | 600g | 1.2kg |
| Yeast | 100g/1L | 200g/2L | 300g/3L | 500g/5L | 1kg/10L | 2kg/20L |
| Steam | | 0.017t/hr | 0.017t/hr | 0.05t/hr | 0.10t/hr | 0.20t/hr |
Jinan Shun Long Service
Before-Sales Service
1. Layout Design for new build brewery
Our experienced engineer( more than ten years) will provide the
detailed layout according to your brewery, if needed, we will fly
to your brewery at our cost.
2. Exist Brewery Expansion
Expansion of the brew house, beer tanks, or other parts, we will
design and manufacture as per your exist brewery.
3. Effective business communication
Our sales team are young and rich of experience, we are full of
passion, all of us have been in this business line for more than 8
years, and they are graduated from UK, Russia etc.
4. Brewing consultant
We also bult a good relation with Shandong university and other
institutes who are expert in beer brewing, we are capable to
provide the most advanced brewing technology.
After-Sales Service
1. Guarantee: 3 years
2. Installation: We shall send 1-2 enginees to your place for
installtion and commission work in 20-30 ds.
3. We provide easy damage parts and life long technical support and
after sales for free.
