Product advantages :
1- we support installation and debugging, technical guidance on
site
2- engineer will teach how to brewing and running the production
line, test the beer’s quaity
3- design drawing for free
4- competitive and low price of raw material
5- high quality of the beer equipment
6- competitive price
7- highly automatic or manual operation
8- material: SS304 or red copper

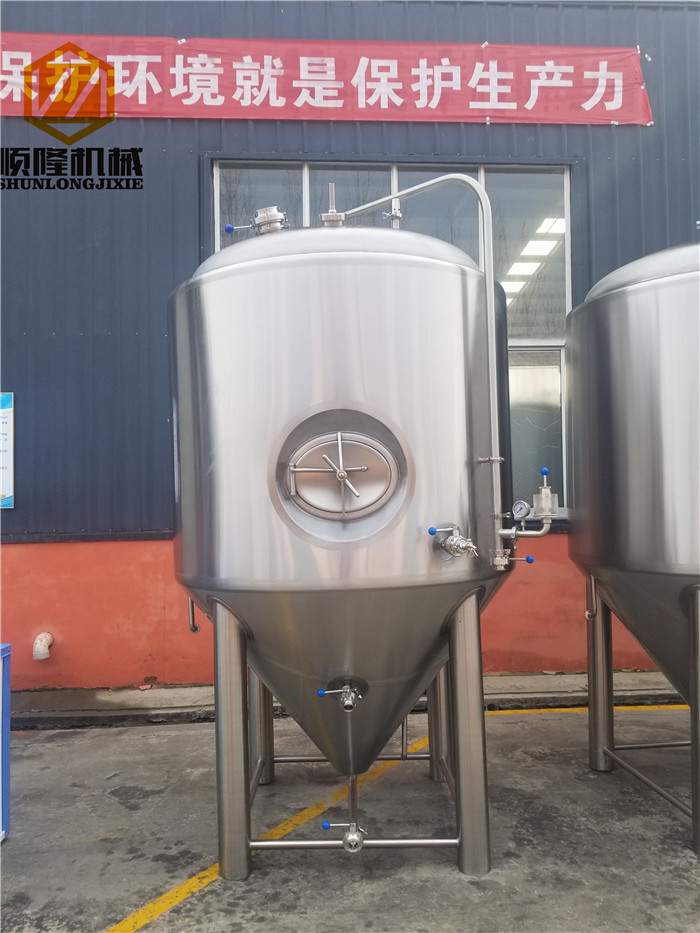

Fermenter available from 1 Barrel to 100 Barrels with an average
25% Head Space. All tank have a
Dish top , Cylinder body & 60 /70° Cone Bottom . Certified
stainless steel material for all tanks,
with 100% TIG welded joints and seams with sanitary interior
polish. Dimple Plate jacket for
Glycol cooling & high efficient Polyurethane foam insulated. All
tanks use Tri-clamp connections,
are designed for up to 14.7 PSI and tested at 30 PSI. We can custom
fabricate any tank to meet
your brewery’s space and height restrictions.
Beer brewing system’s analysis
| item | SLET-0.1 | SLET -0.2 | SLET -0.3 | SLET -0.5 | SLET -1.0 | SLET -2.0 |
| Production capacity | 100L/day | 200L/day | 300L/day | 500L/day | 1000L/day | 2000L/day |
| floor space | 15m2 | 25m2 | 35m2 | 50m2 | 80m2 | 120m2 |
| Total power | 12kw | 12kw | 12kw | 15/36kw | 22/72kw | 31/144kw |
| Maximum hourly water consumption | 0.2m3/h | 0.4m3/h | 0.5m3/h | 1.0m3/h | 1.5m3/h | 2.0m3/h |
| Total water used | 0.5m3/d | 1.m3/d | 1.5m3/d | 2.5m3/d | 5m3/d | 10m3/d |
| Consumption of malt | 20kg | 40kg | 60kg | 100kg | 200kg | 400kg |
| Consumption of hops | 60g | 120g | 180g | 300g | 600g | 1.2kg |
| Yeast | 100g/1L | 200g/2L | 300g/3L | 500g/5L | 1kg/10L | 2kg/20L |
| Maximum steam | | 0.017t/hour | 0.017t/hour | 0.05t/hour | 0.10t/hour | 0.20t/hour |
After-sale service:
1. Provide the required customs declaration files, timely tracking
freight
2. The equipment main configurationgs for 3 years warranty time,
such as the valves and so on.
3. Professional engineers for installation, commissioning,
maintenance.
4. Directed by executable remote installation(with no experience in
beer, equipment installation experience, can also perform
operations, please make this clear before custom equipment, we have
successful cases)
