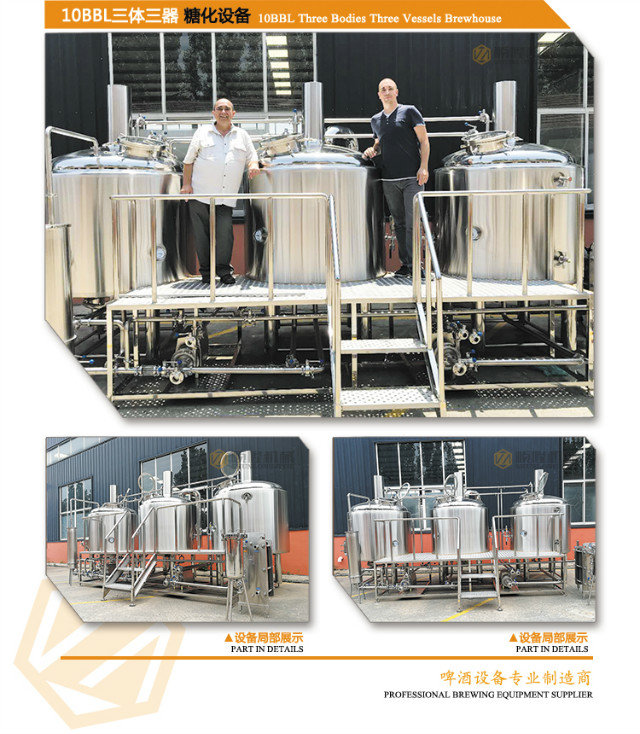

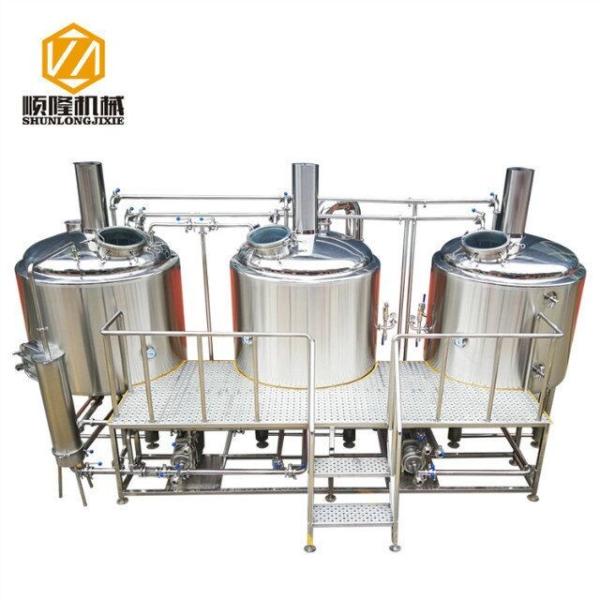

1000L Three vessels small brewery equipment with brewhouse and
fermenter
Jinnan Shunlong machinery company is a professional supplier for
all kinds of beer brewing equipment ranging from 50l home brewing
equipment to large scale brewery machine.
Our reserch and development group always update the most advanced
technology and designing idea.The skilled technician designing and
manufacturing the equipment according to your requirement.

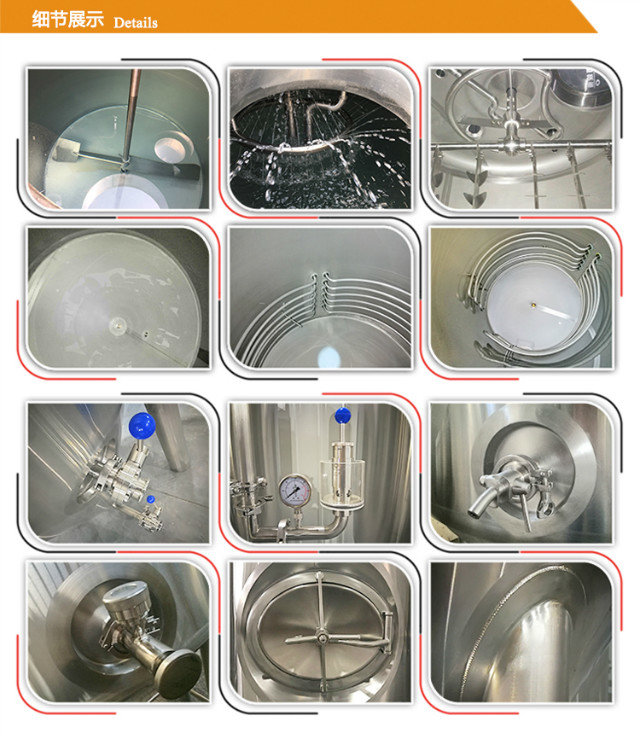

Product details.
1- Certified stainless steel 304
2- Mash and brew kettle with steam jacket or directly heated by
electricity
3- Lauter with side grain out doors and VFD controlled rakes
4- Sanitary wort pumps, hot liquor pumps with VFD control
5- Sanitary plate heat exchanger and wort aeration system
6- Mash Hydration
7- LED lights with all the tanks
8- Big-size glass manway in all the tanks
9- work platform with sanitary process piping & sanitary valves
10- wort buffer tank and hop back
11- UL and CE certification available
12- S7200 control system
Equipment list reference
| Brew House | Beer Tank | Support
| SS Keg | Kegging line |
100L to 5000L (3BBL to 40BBL) | 100L to 20000L (3BBL to 50BBL) | / | DIN 20L,30L, US 1/6, 1/4,1/2bbl. Euro 20L,30L,50L. | 60-80kegs per hour |
Single Two vessels, Combined Two vessels Three vessel, Four vessels or Customized | Concial / Horizontal | Malt mill, hot liquor and glycol tanks, plate heat exchanger,steam
generator, CIP system, PLC contro system. | DIN 20L,30L, US 1/6, 1/4,1/2bbl. Euro 20L,30L,50L | Single station, Doubel station
Conbained system |
| Pumps, pipelines, Platform, plate heatexchanger, control system | sample valve, cleaning ball, temperature sensor, coolant belt.
safety valve, dry hops port. | DIN 20L,30L, US 1/6, 1/4,1/2bbl. Euro 20L,30L,50L |
Before-Sales Service
1. Layout Design for new build brewery
Our experienced engineer( more than ten years) will provide the
detailed layout according to your brewery, if needed, we will fly
to your brewery at our cost.
After-Sales Service
1. Guarantee: 3 years
2. Installation: Our engineers team will provide you the perfect installtion and
commissioning service. Almost of them have been to 5 countries even
more.
3. Our appointed agents are in US, Europe, Russia and other ten
countries, they will provide you 24 hours service.
