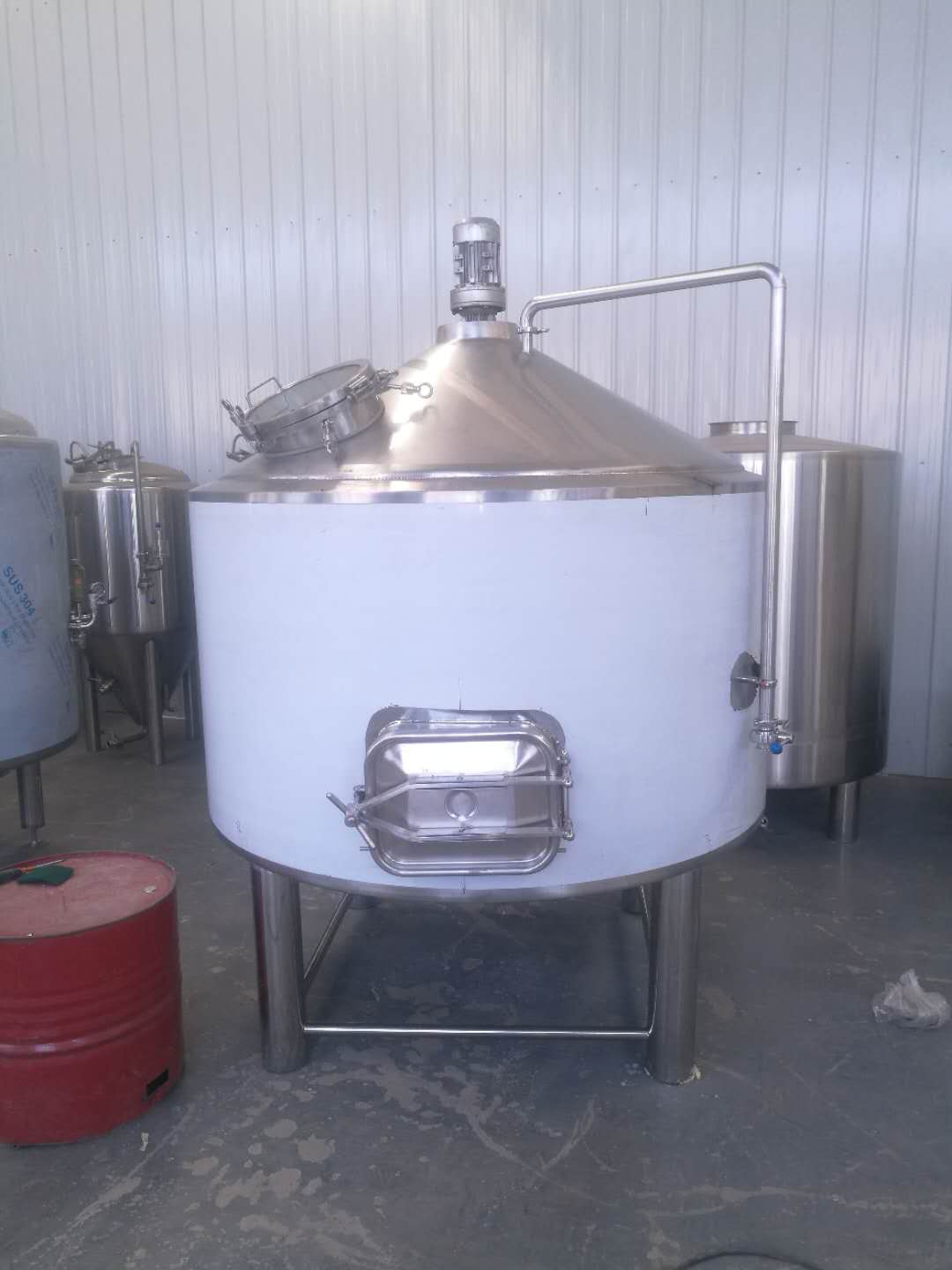

1.5KW 51mm inlet double steam jacket 1500L Mash tun with false bottom​

1500L Mash tun technical date sheet

Gross capacity:1850L

Useful capacity:1500L

Interior Shell: SUS304 full welded; TH=3mm

Exterior Shell:SUS304 full welded; TH=2mm

100% TIG welding with pure argon gas shield

Interior Finish: Overall polishing to 0.4 μm without dead corner

Insulation: PU; TH=80mm

Heat: Double steam jacket

Equipped with: Raker, Power: 0.75KW, Speed ratio: 1:25.

The raker with VFD controlled motor and turbine reducer

Laser cutting V-wire False Bottom/Filter

Dished top and sloped bottom

Stainless steel Top Manhole

CIP cleaning ball

Drain 2 inch

Sanitary sight glass

High accuracy temperature sensor

4pcs completely SUS304 heavy duty legs with leveling pad

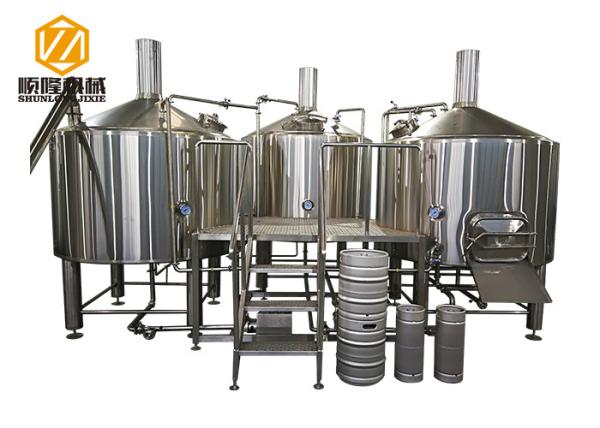

Brewery

Jinan Shun Long Machinery Co., Ltd. is a professional manufacturer of fermentation equipment. It is specialized in the design, manufacture, installation and commissioning of various beer equipments, fruit wine equipments and supporting facilities. It mainly includes mini brewing equipment, fermentation equipment, yeast propagation equipment, small and medium-sized breweries, other refrigeration equipments in hotels, bars and etc.

Subsidiary company:

Jinan Zhong Niang Machinery Equipment Co., Ltd., which specializes in manufacturing air-drying machines, dryers, cyclone and other mechanical equipment.

Jinan Shun Long Machinery Co., Ltd. Pingyuan Branch, which specializes in the field of bio-industry, providing technology improvement services such as process research and development, equipment development, installation and construction, and energy conservation and consumption reduction systems.

Shun Long company warmly welcomes friends from all circles to visit us!
