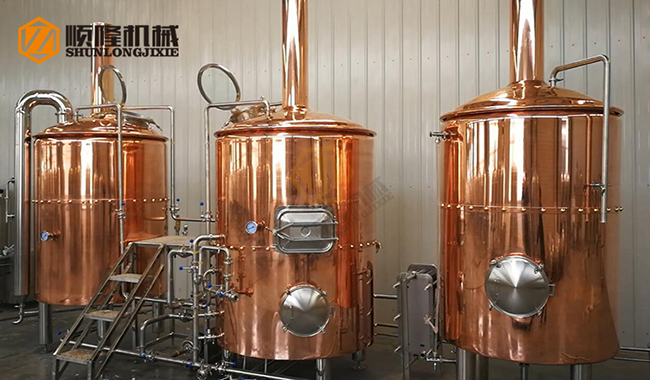

three vessles brewing kit 2000L brewhouse with 8 units of
fermenters
Product Description
2000L Brewhouse Specification
Cooling way: Ice water belt cooling, two stages cooling.
Cooling media: glycol water or alcohol water.
Structure: Inside and outside are all stainless steel 304
processing. And the inner polished into 0.4µm, stainless steel
cooling water jacket, with 2.0mm thickness.
The inner tank thickness 3.0mm, cone bottom 3.0mm.Cladding 2.0mm.
Insulation: Polyurethane-thickness: 100mm.
Equip with: Cone 75° resist compression design, dripping
temperature drop; Side manhole: 330*430mm.
Sampling method: 1 piece of aseptic sampling valve.
Quick blind plate design at the bottom, two inlet and outlet, one
is 38mm diameter, sewage, another one is 32mm diameter, using for
beer outlet.
The cylinder and cone bottom. Cooling media inlet and outlet pipe
is stainless steel 304. Mechanical valves, rotary washing spray
balls.
Fermentation tank pressure: Design pressure 0.3MPa; Working
pressure 0.15Mpa.
Fermentation heat exchange area: 4㎡.
Safety valve:Ф25
Equip with adjusting anchor; 4 support legs add braced.
Cooling control: single tank, single control.1. Brewhouse: two vessels, three vessels, four vessels brewhouse
2. Heating medium: steam heating
3. Insulation material: rock wool. Insulation thickness: 100mm
4. Mash tank; hydrator, mixer, steam heating jacket
5. Lauter tun: rake, agitator, false bottom, hydrator
6. Brewkettle, steam heating jacket, inner steam heating deivce
7. Whirlpool tun: whirlpool entry
Product advantages :
1- we support installation and debugging, technical guidance on
site
2- engineer will teach how to brewing and running the production
line, test the beer’s quaity
3- design drawing for free
4- competitive and low price of raw material
5- high quality of the beer equipment
6- competitive price
7- highly automatic or manual operation
8- material: SS304 or red copper
II Configuration
| Item | Capacity | Material | Heating method | Mixed mode |
| 2-vessel | 100L | 304 stailess steel(food grade) | Steam &electricity &fire | [Mash+Lauter(upper)+Whirlpool(lower)]+Kettle |
| 200L |
| 250L | [Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool |
| 500L |
| 3BBL | [Mash+Lauter(upper)+Whirlpool(lower)]+Kettle |
| 3.5BBL | [Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool |
| 5BBL | [Mash+Lauter(upper)+Whirlpool(lower)]+Kettle |
| 7BBL | [Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool
|
Beer brewing system’s analysis
| item | SLET-0.1 | SLET -0.2 | SLET -0.3 | SLET -0.5 | SLET -1.0 | SLET -2.0 |
| Production capacity | 100L/day | 200L/day | 300L/day | 500L/day | 1000L/day | 2000L/day |
| floor space | 15m2 | 25m2 | 35m2 | 50m2 | 80m2 | 120m2 |
| Total power | 12kw | 12kw | 12kw | 15/36kw | 22/72kw | 31/144kw |
| Maximum hourly water consumption | 0.2m3/h | 0.4m3/h | 0.5m3/h | 1.0m3/h | 1.5m3/h | 2.0m3/h |
| Total water used | 0.5m3/d | 1.m3/d | 1.5m3/d | 2.5m3/d | 5m3/d | 10m3/d |
| Consumption of malt | 20kg | 40kg | 60kg | 100kg | 200kg | 400kg |
| Consumption of hops | 60g | 120g | 180g | 300g | 600g | 1.2kg |
| Yeast | 100g/1L | 200g/2L | 300g/3L | 500g/5L | 1kg/10L | 2kg/20L |
| Maximum steam | | 0.017t/hour | 0.017t/hour | 0.05t/hour | 0.10t/hour | 0.20t/hour |
Shun Long Servie
Pre-sale service:
1. Make the equipment details specifications to customers
2. We can supply the OEM process, according to the drawings, the
samples to customized the beer equipment
3. Layout plan in CAD drawings of beer machine.
4. The competitive price and the timely delivery.
After-sale service:
1. Provide the required customs declaration files, timely tracking
freight
2. The equipment main configurationgs for 3 years warranty time,
such as the valves and so on.
3. Professional engineers for installation, commissioning,
maintenance.
4. Directed by executable remote installation(with no experience in
beer, equipment installation experience, can also perform
operations, please make this clear before custom equipment, we have
successful cases)
If you are interested in our machines, please don't hesitate to
contact me.
We can meet you what you want, looking forward to your inquiry.
Let's go together in the process of cooperation to the good
prospects.
