Stainless Steel 500L Home Brewing Systems

Ask Lasest Price
Brand Name :	SLET
Model Number :	SL-500
Certification :	CE ISO
Price :	USD 25,000- 67,000 Per set
Payment Terms :	T/T
Supply Ability :	20 sets per month
Delivery Time :	35 working days after the deposit

Add to Cart

Product Details
Company Profile

Stainless Steel 500L Home Brewing Systems

Pale Ale stainless steel 500L Brewing System with top manway fermenters

500L Complete Line
Brewing System	Names	Capacity	Technical parameter
Grinding System	Malt mill machine	300KG/H	Double Roller,Noise<60db
Heating System	Boiler	50KG/H	Electric,Gas,Oil,Coal Type/CE certification
Brewhouse System	Mash/Lauter tun	500L	Mashing Process:Decoction.Infusion.Multi-step infusion Heating source:Steam,Electric,Gas SUS304/Red copper Interior: 3mm Exteior: 2mm
	Brew Kettle/ Whirlpool Tank	500L
	Hot Water Tank	800L
	Heat exchanger	5m2	Stainless steel plate
Fermentation System	Fermentation Tank	500L/1000L	Top manway/Side manway Drying hop port to brew IPA Dimple Plate Cooling jacket Carbonation port to fill CO2
Fermentation System	Yeast Adding Tank	5L	SUS304 Stainless Steel
Cooling System	Glycol Water tank	1500l	Equiped with PU level gauge
	Chiller	5HP	UL/CE certified electric elements,Copeland compressor
	Pump	3T/h
Cleaning System	Acid Tank	50L	SUS304 full welded
	Alkali Tank-electri heating	50L
	Pump	3T
Control System	Control Cabinet	Manual/PLC/ HMI	Manual/Semi-automatic/Automatic
Optional	Auger System
	Grain Case
	Grist Hydrator
	Piping flow panel for Brewhouse
	Brewhouse Separate PLC Controller
	Customized
Electrical part	Power: 380v/220v, 50HZ

Our brewhouse system includes 2 vessels, 3 vessels, 4vessels and 5 vessels, capacity from 100L to 50000L, electric or steam heat. Semi-automatic control and easy to operate.

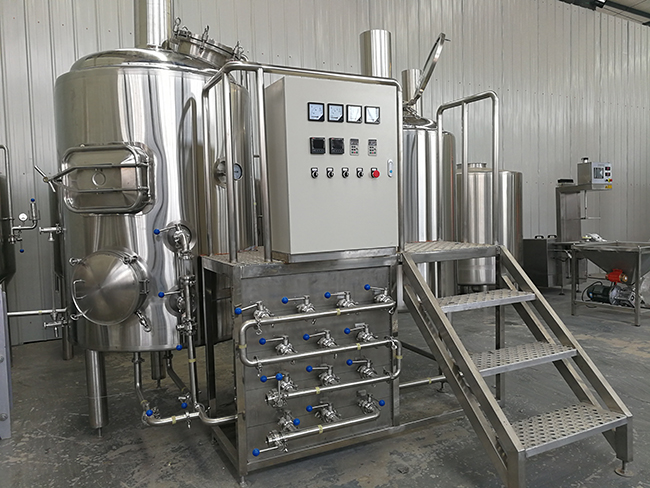

500L Brewing system
1 Desiging tanks and heating system according to craft, mash tank warming≥1℃/min
2 Energy saving stir structure : large cross-section impeller, 15r/min speed
3 Sieve plate of filter tank includes welding sieve plate and milling sieve plate.
4 Plow knife of filter tank separated to one foot, feet and bow plow knife
5 Wort boiling heat way includes steam jacket, interior heating and exterior heating.
6 Material includes stainless steel 304, 316 and red copper

Fermentation tanks body is provided with a sandwich or cold, heating, cooling temperature. Fill the tank with the top and bottom head(or cone) are used spinning R-angle-grinding, polishing tank wall, no health corners, and fully enclosed design ensures that the material is always under a pollution-free status of the mixing, fermentation, air breathing apparatus with hole, CIP cleaning nozzles, manholes and other devices.

500L Fermentation tanks

1 Fermentation tanks available from 100L to 50000L (1 gallon to 20 gallon) and 25% Head Space.
2 All tanks have a Dish top
3 Cylinder body & 60/70° Cone Bottom.
4 Certified stainless steel(304,316) material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish.
5 Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated.
6 All tanks use Tri-clamp connections, are designed for up to 2bar and tested at 3bar.

Item	Capacity	Material	Heating method	Mixed mode
2-vessel	100L	304 stailess steel(food grade)	Steam &electricity &fire	[Mash+Lauter(upper)+Whirlpool(lower)]+Kettle
	200L			[Mash+Lauter(upper)+Whirlpool(lower)]+Kettle
	250L			[Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool
	500L			[Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool
	3BBL			[Mash+Lauter(upper)+Whirlpool(lower)]+Kettle
	3.5BBL			[Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool
	5BBL			[Mash+Lauter(upper)+Whirlpool(lower)]+Kettle
	7BBL			[Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool

Beer brewing system’s analysis

item	SLET-0.1	SLET -0.2	SLET -0.3	SLET -0.5	SLET -1.0	SLET -2.0
Production capacity	100L/day	200L/day	300L/day	500L/day	1000L/day	2000L/day
floor space	15m2	25m2	35m2	50m2	80m2	120m2
Total power	12kw	12kw	12kw	15/36kw	22/72kw	31/144kw
Maximum hourly water consumption	0.2m3/h	0.4m3/h	0.5m3/h	1.0m3/h	1.5m3/h	2.0m3/h
Total water used	0.5m3/d	1.m3/d	1.5m3/d	2.5m3/d	5m3/d	10m3/d
Consumption of malt	20kg	40kg	60kg	100kg	200kg	400kg
Consumption of hops	60g	120g	180g	300g	600g	1.2kg
Yeast	100g/1L	200g/2L	300g/3L	500g/5L	1kg/10L	2kg/20L
Maximum steam		0.017t/hour	0.017t/hour	0.05t/hour	0.10t/hour	0.20t/hour
