Pub home micro used beer making machine / stainless steel mini beer
brewing equipment
Product Description

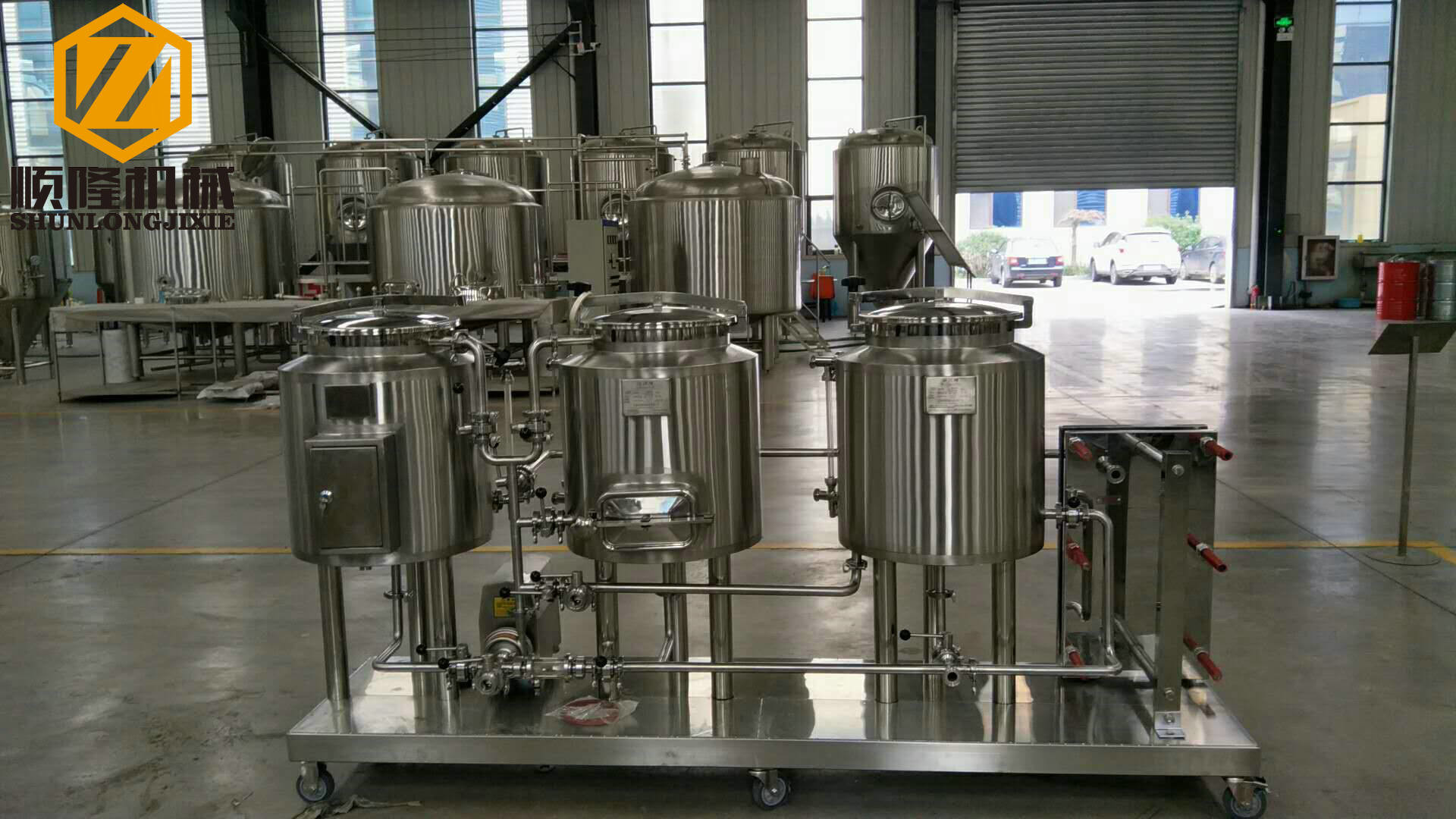

100L Beer making machine Configuration
1x centrifugal type wort pump
2x 100L fermentation tank with cooling jacket and insulation
1x glycol water tank with refrigerator for cooling fermentation
tanks
1x 100L mash/lauter boiling whirlpool combined tank
1x one plate heat exchanger for wort cooling
1x controlling panel for all flow and temperature control, digital
panel or plc optional
All tanks interior shell 2mm, cladding shell 1.5mm, SUS304
1. Brewhouse: two vessels, three vessels, four vessels brewhouse
2. Heating medium: steam heating
3. Mash tank; hydrator, mixer, steam heating jacket
4. Lauter tun: rake, agitator, false bottom, hydrator
5. Insulation material: rock wool. Insulation thickness: 100mm
6. Brewkettle, steam heating jacket, inner steam heating deivce
7. Whirlpool tun: whirlpool entry
Product dvantages :
1- highly automatic or manual operation
2- material: SS304 or red copper
3- we support installation and debugging, technical guidance on
site
4- engineer will teach how to brewing and running the production
line, test the beer’s quaity
5- design drawing for free
6- competitive and low price of raw material
7- high quality of the beer equipment
8- competitive price
Beer making machine specification list
ii Configuration
| Item | Capacity | Material | Heating method | Mixed mode |
| 2-vessel | 100L | 304 stailess steel(food grade) | Steam &electricity &fire | [Mash+Lauter(upper)+Whirlpool(lower)]+Kettle |
| 200L |
| 250L | [Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool |
| 500L |
| 3BBL | [Mash+Lauter(upper)+Whirlpool(lower)]+Kettle |
| 3.5BBL | [Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool |
| 5BBL | [Mash+Lauter(upper)+Whirlpool(lower)]+Kettle |
| 7BBL | [Mash+Lauter(upper)+HLT(lower)]+Kettle+Whirlpool
|
Beer brewing system’s analysis
| item | SLET-0.1 | SLET -0.2 | SLET -0.3 | SLET -0.5 | SLET -1.0 | SLET -2.0 |
| Production capacity | 100L/day | 200L/day | 300L/day | 500L/day | 1000L/day | 2000L/day |
| floor space | 15m2 | 25m2 | 35m2 | 50m2 | 80m2 | 120m2 |
| Total power | 12kw | 12kw | 12kw | 15/36kw | 22/72kw | 31/144kw |
| Maximum hourly water consumption | 0.2m3/h | 0.4m3/h | 0.5m3/h | 1.0m3/h | 1.5m3/h | 2.0m3/h |
| Total water used | 0.5m3/d | 1.m3/d | 1.5m3/d | 2.5m3/d | 5m3/d | 10m3/d |
| Consumption of malt | 20kg | 40kg | 60kg | 100kg | 200kg | 400kg |
| Consumption of hops | 60g | 120g | 180g | 300g | 600g | 1.2kg |
| Yeast | 100g/1L | 200g/2L | 300g/3L | 500g/5L | 1kg/10L | 2kg/20L |
| Maximum steam | | 0.017t/hour | 0.017t/hour | 0.05t/hour | 0.10t/hour | 0.20t/hour |
Shun Long Servie
Pre-sale service:
1. Make the equipment details specifications to customers
2. We can supply the OEM process, according to the drawings, the
samples to customized the beer equipment
3. Layout plan in CAD drawings of beer machine.
4. The competitive price and the timely delivery.
After-sale service:
1. Provide the required customs declaration files, timely tracking
freight
2. The equipment main configurationgs for 3 years warranty time,
such as the valves and so on.
3. Professional engineers for installation, commissioning,
maintenance.
4. Directed by executable remote installation(with no experience in
beer, equipment installation experience, can also perform
operations, please make this clear before custom equipment, we have
successful cases)
If you are interested in our machines, please don't hesitate to
contact me.
We can meet you what you want, looking forward to your inquiry.
Let's go together in the process of cooperation to the good
prospects.
