200l Brewpub Small Brewery Equipment for nano brewery equipment
Product details
- Mirror polishing and wire drawing SUS 304 for optional, thickness:
3-4mm
- Rational layout, Humanized design and convenient operation
- Brewhouse Combination Diversification
- Decoction, infusion, multi-step infusion mashing can be realized.
- Electric, Steam, Gas directly fire heating source for optional
- 15 days free installation and training service offered by
profession engineer.
Product characters
- Plate heat exchanger – 304 or 316 plates
- Mash / lauter tun - grist hydrator, false bottom, rake, sparging
- Kettle / whirlpool tun – steam / electric/ direct gas fired heating
system, tangential entry
- Pumps with ABB motor
- integrated stainless steel 304 working platform
- malt Miller
- Chiller and Glycol tanks
- wort grant, hops back
- Pipelines and valves
- Hot liquor tanks and pumps
- 8-12 fermentation tanks/bright tanks
- CIP Cart
- Control box and UL / CSA / CE Rated Controls and Components
- Complete engineering support and onsite installation
200L CONFIGURATION
1. Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger for optional
2. 200L Brewhouse Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various
combination
Hot water tank and cold water tank for optional in special
combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel or copper cladding are popular
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings
3. 200L or 400L Fermentation Unit

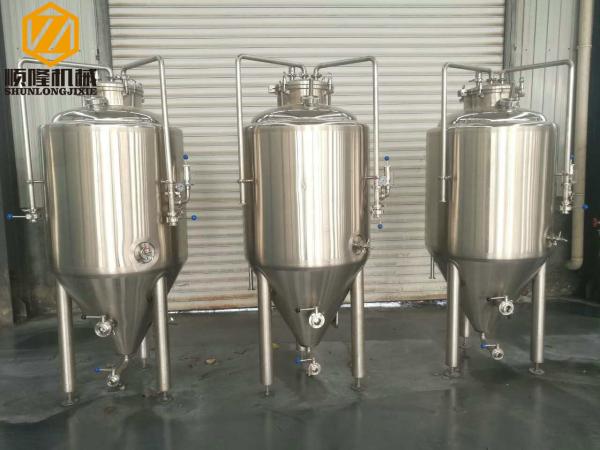

Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for
various beers
All manhole, valves, pressure gauges, fittings etc are included
4. Beer Filter Unit(optional)
In restaurant or bar, beers are always served as craft beer without
filtration
5. 200L or 400L Bright Tank Unit
Standard stainless steel bright tanks for beer maturation,
conditioning, service, carbonation
Single size as fermenter is common used in restaurant or bar
Tanks quantity is exactly calculated for various beers and the
function
All manhole, valves, stone, gauges, fittings etc are included
6. Cooling Unit
Insulated glycol water tank with or without copper coil for glycol
liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling
energy
Sanitary centrifugal pump for Glycol water recycle among tanks and
heat exchanger
All pipes, fitting, insulation materials are included
7. Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling
for brewhouse
Electrical controlling cabinet with temperature, on-off controlling
for cooling parts
Temperature controller, thermocouple, solenoid valves etc are
included
PLC with touch screen panel for special request
8. Beer Dispense
Beer dispensing columns and faucets for directly beer service
Keg filling and rinsing machine
Manually bottling machines for self consumption
9. Other Facilities
Portable CIP system for cleaning the tanks
Steam boiler for brewhouse heating
Water treatment for brew water
Oil free air compressor
Small brewery equipment:
| Item | Equipment | Specification | Quantity |
| Brewhouse system | Malt miller | | 1 |
| Mash tun&Brew kettle | 300L, 500L,1000L | 1 |
| Lautering&whirlpool tank | 300L, 5000L, 1000L | 1 |
| Plate heat exchanger | 1-15m2/h | 1 |
| Pump | 1-5m3/h | 1 |
| Fermentation system | Fermentation tank | 300L, 5000L, 1000L | 2pcs or 4pcs or 6pcs |
| Yeast adding tank | 1-100L | 1 |
| Wort oxygenator | 3m3/h | 1 |
| Cooling system | Refrigerator | 3HP, 5HP, 10HP | 1 |
| Glycol water tank | 500L, 1000L, 2000L | 1 |
| Pump for cool water tank | 1-5m3/h
| 1 |
| CIP Cleaning system | Alkali tank | 50L-500L | 1 |
| Sterilization tank | 50L-500L | 1 |
| Pump | 1-3m3/h | 1 |
| Control system | Digital display controlling system | 1 |
Small Brewery suggestions
| Model Capacity | SL-200 | SL-300 | SL-500 | SL-600 | SL-1000 |
| Capacity | 200L/Day | 300L/Day | 500L/Day | 600L/Day | 1000L/Day |
| Area Request | 20M2 | 40M2 | 50M2 | 60M2 | 100M2 |
| Power Consumption | 15Kw | 22Kw | 35Kw | 45Kw | 70Kw |
| Steam Request | | | 0.1Ton/Hr | 0.12Ton/Hr | 0.15Ton/Hr |
| Water Consumption | 0.8M3/Day | 1M3/Day | 1.5M3/Day | 2M3/Day | 3M3/Day |
Learn more details about Shun Long equipment
1. Inner are of international standards of quality 304 stainless
steel material, high-pressure polyurethane foam insulation, the
jacket in accordance with customer requirements, can be polished
stainless steel, matt, carbon steel, the form of spraying.
2. The application of international standardized fermented beer
production technology, a wide range of temperature control
application technology, mirror polishing inside the tank, up to
≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet
automatic cleaning and disinfection of the controlled system
requirements.
3. Fermentor cooling jacket at the same time meet the needs of the
country the world’s technical standards, the provision of Maitreya
paneles, arched passages spinulosa Watt Jacket channel heat
exchangers and other methods to meet different cooling media and
the pressure of the heat exchange technology needs
Shun LONG Equipment range
Shunlong Equipment Technology Co., Ltd. is a beer equipment
manufacturer, and fermentation equipment manufacturers of Shandong.
Professionally design, production, manufacture, installation,
commissioning all kinds of beer equipment and facilities, including
medium-sized beer saccharification, fermentation equipment, yeast
expansion propagation, filter / filter press system, CIP cleaning
system, high concentration dilution system, micro-brewed beer
equipmentand equipment and filling equipment.
We mainly have the following kinds of equipment: 50L/D,100L/D,
200L/D, 300L/D, 400l/D, 500L/D, 600L/D, 800L/D, 1000L/D,
1200L/D,1500L/D,1800L/D, 2000L/D, 2300L/D, 2500L/D, 3000L/D,
5000L/Detc. We can produce the equipment according to clients’
requirments. Our equipment is mainly applied in hotels, bars,
barbecue, small and medium sized breweries and so on. As for the
price, different products and specifications means various prices
Shun Long Service
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the
drawings.
3. We can also make customized products according to customer’s
needs.
After-sale service:
1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which
excluded charges of door-to-door service. 3. Thus, if necessary, we
can appoint our technician to debug the machine with air ticket,
visa, accommodation and labor cost provided by your party. Or you
can send your technician to our company to learn techniques.
4. Meanwhile, you can call or e-mail to consult any relevant
questions since we have a special line of after-sale service. Or
you can communicate online and solve the problems.
FAQ
1. What is your packging?
Export standard, wooden case, iron crate, suitable for long
distance sea transportation.
2. What is your lead time?
30 working days after we receive your payment.
3. Could you caculate the shipping for me?
Yes, please kindly let us know which port is nearest to your place.
4. Can your factory produce products according to our samples or
drawing?
Yes, we can. And most of our products can be customerized.
5. What is your term of payment?
40% T/T in advance, balance before shippment. or other suitable
payment methods.
6. How to make an order?
1. Send one inquiry by email or calling
2. check email and choose models in our catalogue
3. negotiate detail order
4. confirm proforma invoice and arrange deposit
5. 30 days later get your equipment
